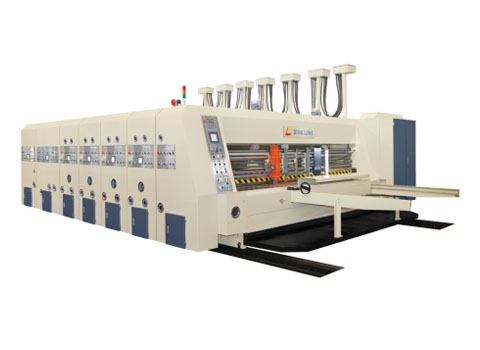

SNOVA-2200/2500

Top printing, roll to roll transfer printing slotting die-cutting machine

Features:

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • High rigid design, spraying circulate lubridation.
  • Choose international brand electric components and transfer bearings, pass CE certification.
Chat online [email protected]

Product specification

series 2236 2536
Max.machine speed(sheets/min) 100 80
Max.feeding size(L×W) 2100×3600 2400×3600
Max.printing area 2100×3500 2400×3500
Min.feeding size(L×W) 550×900 650×900
Printing plate thickness                     7.2
Min.slotting interval(reverse)                   320×100

Product Features

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • High rigid design, spraying circulate lubridation.
  • Choose international brand electric components and transfer bearings, pass CE certification.

Product unit

Feeding Unit:

  • Operation can be controlled by both main console and each unit touch screen
  • Assistant vacuum transfer suitable for lager sheet.
  • Lead-edge feeding, adjustable air control, precious registration
  • Brush and dust catcher synchronic lifting.
  • Double couple feeding roller device ,feeding rubber roller use quick replace device

Printing Unit：

  • Operation can be controlled by both main console and each unit touch screen.
  • Sheet guide roller quick lateral moving.
  • Phase control by magnet coupling, motorized phase zero.
  • Ink saving circulate system, safety ink taking, short ink alarm.

Slotting unit

  • Operation can be controlled by both main console and each unit touch screen.
  • Box height adjusted by independent driven box.
  • Pre-creaser, creaser slotting holder motorized gap control.
  • Middle knife displacement.

Die-cutting Unit:

  • Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
  • Die-cutting roll pneumatic self-locking device, smooth die-cutting.
  • Sheet guide roll displacement motorized control, quick order change.
  • U.E quick change die-cut anvil with grinding mechanism. Precious settable speed difference compensation, ensure die-cutting accuracy.

Stacking unit

  • Pneumatic lifting device for receiving arm , tightnessdegree adjustable
  • Different speed section typestacking,  transfer belt inverter control
  • Stacker platform lifting inverter control, protection device for lifting safety
  • Side square.Pneumatic stacker lifting.
